Lower Deck
Payload (ton) |
44000 |
Volume (cbm) |
280 |
MD door (LxH) cms |
358x259 |
H5 door (LxH) cms |
95x95 |
Max Rang (KM) |
2051 |
Cruise Speed (KM/H) |
870 |
MTOW (KG) |
165000 |
MZFW (KG) |
126000 |

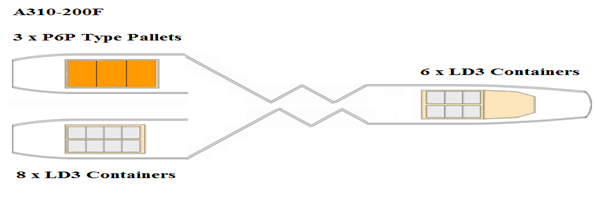

A310-200F
Lower Deck
Payload (ton) |
36500 |
Volume (cbm) |
250 |
MD door (LxH) cms |
358x256 |
H5 door (LxH) cms |
95x108 |
Max Rang (KM) |
3680 |
Cruise Speed (KM/H) |
850 |
MTOW (KG) |
142000 |
MZFW (KG) |
112990 |
A330-200F
Lower Deck
Payload (ton) |
55000 |
Volume (cbm) |
370 |
MD door (LxH) cms |
360x258 |
H5 door (LxH) cms |
95x107 |
Max Rang (KM) |
5950 |
Cruise Speed (KM/H) |
950 |
MTOW (KG) |
233000 |
MZFW (KG) |
173000 |
B737-800F
Payload (ton) |
22500 |
Volume (cbm) |
120 |
MD door (LxH) cms |
340x219 |
H5 door (LxH) cms |
122x84 |
Max Rang (KM) |
5700 |
Cruise Speed (KM/H) |
830 |
MTOW (KG) |
79500 |
MZFW (KG) |
57000 |
B767-200F
Lower Deck
Payload (ton) |
42000 |
Volume (cbm) |
370 |
MD door (LxH) cms |
340x254 |
H5 door (LxH) cms |
119x97 |
Max Rang (KM) |
5926 |
Cruise Speed (KM/H) |
850 |
MTOW (KG) |
159210 |
MZFW (KG) |
120665 |
B777-200F
Lower Deck
Payload (ton) |
102000 |
Volume (cbm) |
580 |
MD door (LxH) cms |
372x305 |
H5 door (LxH) cms |
90x121 |
Max Rang (KM) |
9070 |
Cruise Speed (KM/H) |
905 |
MTOW (KG) |
347800 |
MZFW (KG) |
248110 |
B747-400F
Lower Deck
Payload (ton) |
113000 |
Volume (cbm) |
615 |
MD door (LxH) cms |
341x305 |
H5 door (LxH) cms |
112x120 |
Max Rang (KM) |
8334 |
Cruise Speed (KM/H) |
967 |
MTOW (KG) |
396900 |
MZFW (KG) |
277000 |
